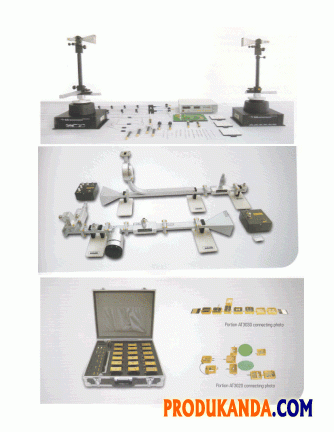

ATEN RF Training Kits
- UHF waveguide Training System
- RF Training System Kit
- Antenna Training System
1. Waveguide Training System
Exp.1.1. Microwave test system understanding and debugging
Exp.1.2. Slotted line adjusting and crystal calibration
Exp.1.3. Measurement of voltage standing wave ratio
Exp.1.4. Technology of impedance measurement & development
Exp.1.5. Measurement and application of directional coupling
Exp.1.6. Hybrid tee maching test
Exp.1.7. Crystal detector calibration
Exp.1.8. Horn antenna gain and the vertical direction measuring
Exp.1.9. The measurement of two ports microwave network parameters
Exp.1.10. Measuring attenuation and phase shift
Exp.1.11. 8.2 - 12.4 Ghz Time-domain waveform measurement
2. RF Training System Kit
2.1. SMA-50 ohm terminal load
2.2. SMA open circuit load
2.3. SMA Short circuit load
2.4. SMA 50 JJ connector
2.5. SMA 50 KK-1 connector
2.6. SMB-C-TKW-1.5 - 3 x 300 power cable linking
2.7. SFF-1.5 - 50-1 shielding line
2.8. BNC-SMA transformer
2.9. Coaxial attenuator 10 dB
2.10. Coaxila attenuator 20 dB
2.11. Technical notes
2.12. Experimental reference books
AT-RF3020 = 1.0 Ghz
AT-RF3030 = 3.0 Ghz
3. Antenna Training System Kit
3.1. a half-wave dipole antenna
3.2. Folded dipole antenna
3.3. 1/ 4 lamda grounding antenna
3.4. Full-wave loop antenna
3.5. Drooping antenna
3.6. Yagi antenna
3.7. Spiral antenna
3.8. Helical antenna
3.9. Horn antenna
3.10. Single patch antenna
3.11. Sircle arrranging antenna
3.12. The frequency range from 500 Mhz - 10 Ghz
ATEN RF Training Kits
Harga :
CALL
Merk :
Esaki
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Sumatera Utara - Medan
Dilihat :
863 Kali
Update Terakhir :
03-01-2011 12:02
